Inclined Plane Friction Tester

Standard:
Clause 20.1 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements.

Application:
The inclined plane friction tester is used to test the stability of an apparatus that requires a solid surface during operation.

Test sample:
Household appliances, such as refrigerators, washing machines, air conditioners, and other household electrical appliances.

Parameters:

Model Surface Diameter Surface Material Angle Range Load Capacity Rotation Method Rotation Speed Remark

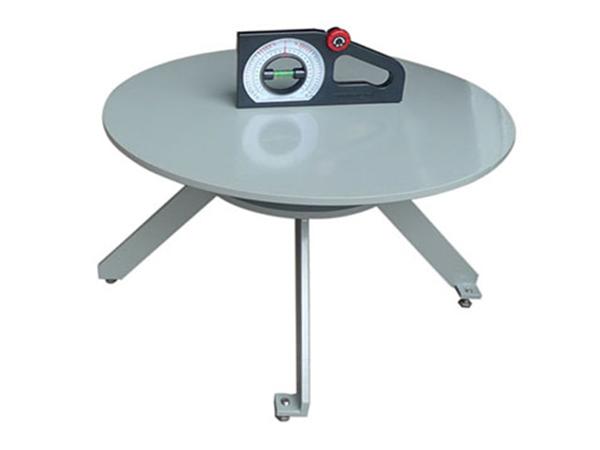

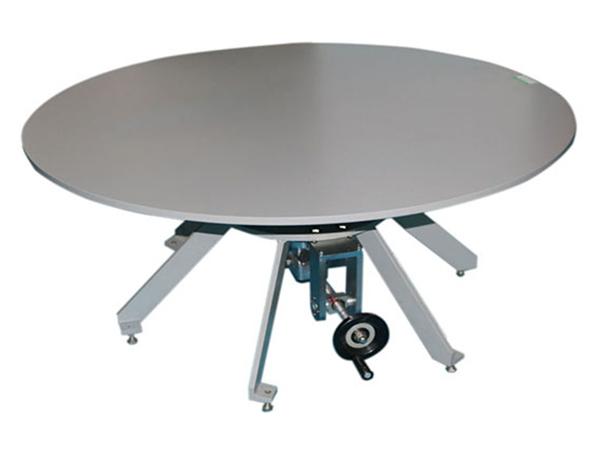

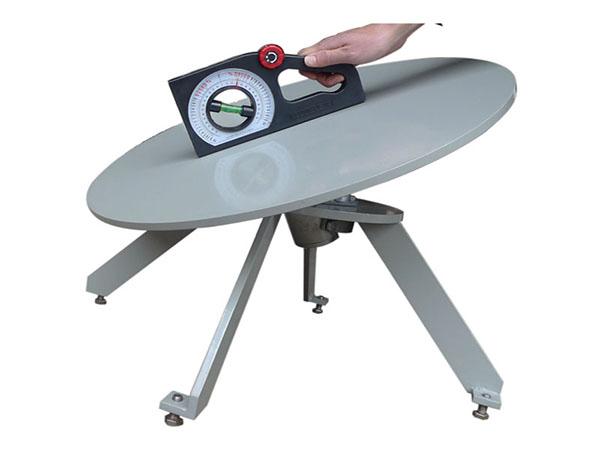

HJ0603 600mm High-quality spray steel plate 0-30° 50kg Manual -/1r/min Round table
HJ0603A/Z 800mm High-quality spray steel plate 0-30° 80kg Manual / Electrical -/1r/min Round table
HJ0603B/Z 1000mm High-quality spray steel plate 0-30° 120kg Manual / Electrical -/1r/min Round table

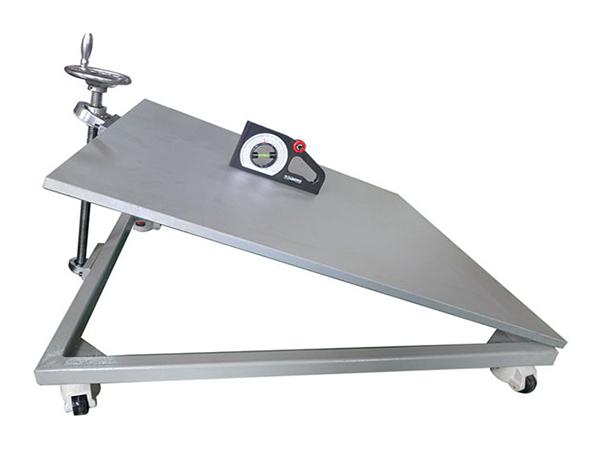

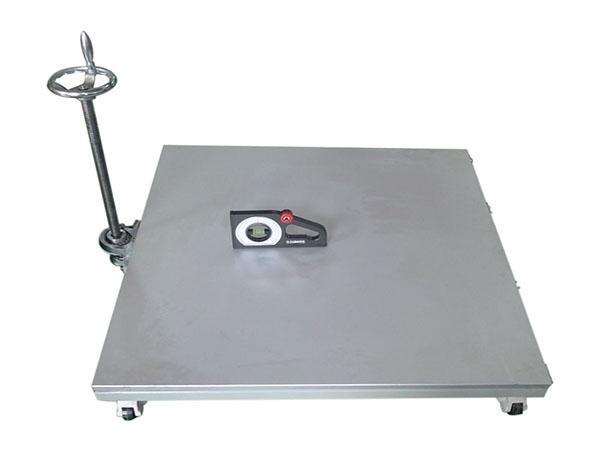

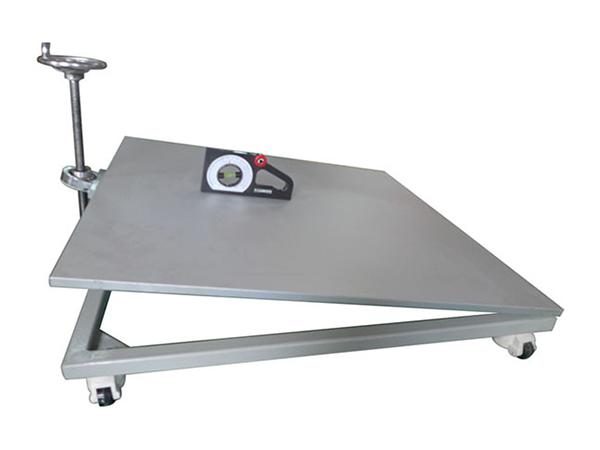

HJ0603C 800*800mm Aluminum plate 0-15° 80kg Manual - Rectangle table

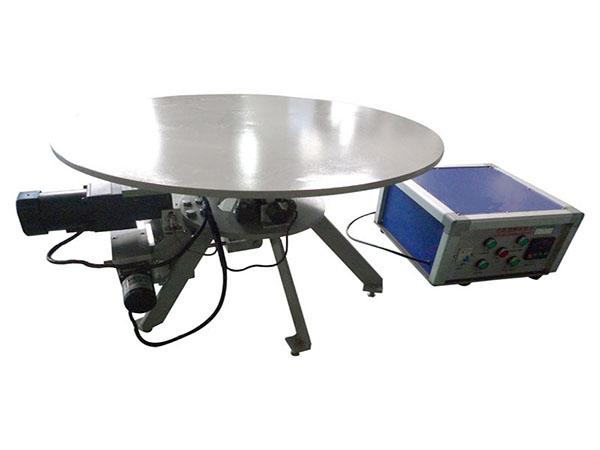

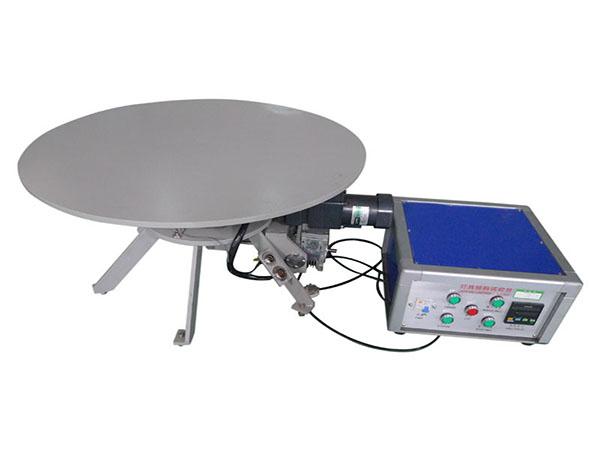

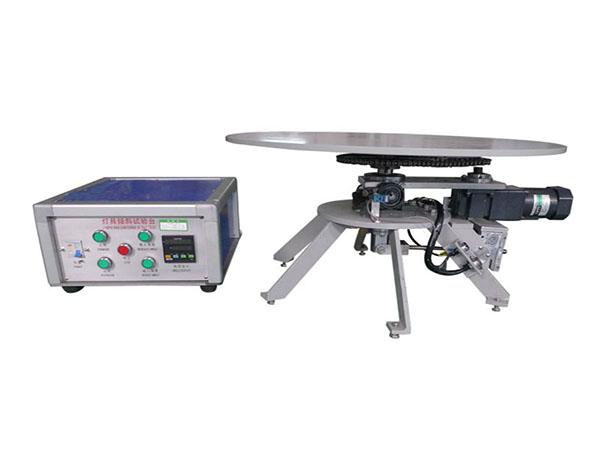

Z represents the version with the automatic rotation function driven by the electrical motor

Feature:

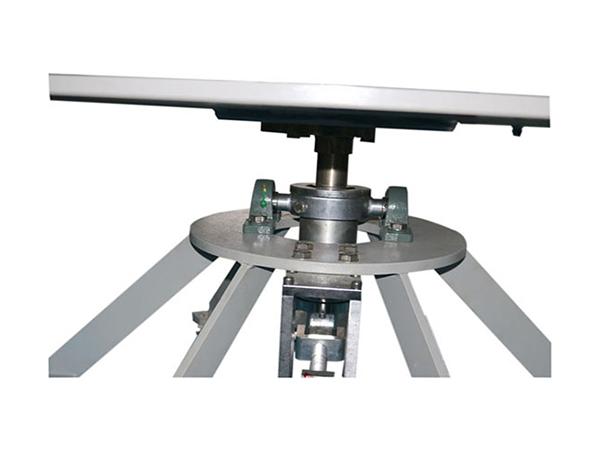

The device consists of a surface and an angle adjusting component. The test sample is placed on the surface, then the test sample’s mechanical stability is measured by slowing inclining the surface. Manual operation and electrical motor drive are optional; the electrical motor drive version can achieve a 1r/min rotating rate.
