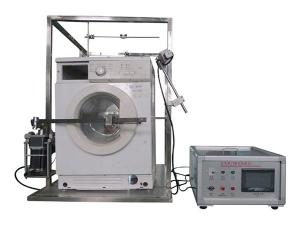

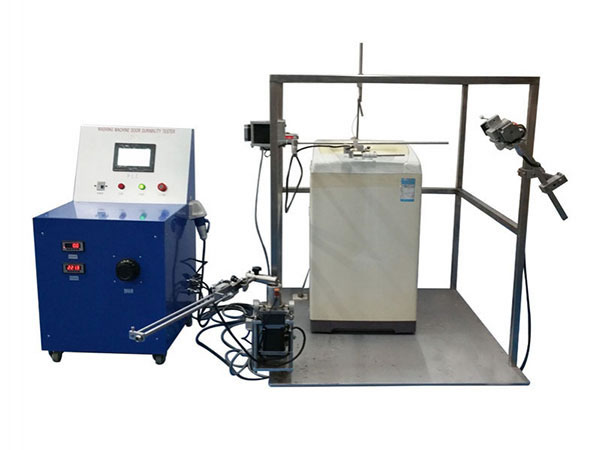

Product information
The test equipment is designed and manufactured as per IEC 60335-2-11 clause 20.101, IEC 60335-2-6 clause 22.108, IEC 60335-2-24 clause 22.112.
Test Project IEC 60335-2-11 clause 20.101
Test equipment for locking means (similar to an endurance test), capable to energized and de-energized 6 000 times, six times a minute or at the rate imposed by the construction of the appliance if this is lower.
IEC 60335-2-6 clause 22.108
Opening and closing of the door of Pyrolytic self-cleaning ovens test equipment, capable to opened at least 10 cm and is then closed by applying a force of 90 N to the handle. This operation is carried out 5 000 times. Every 1 000 cycles, the interlock system for the self-cleaning function is operated.

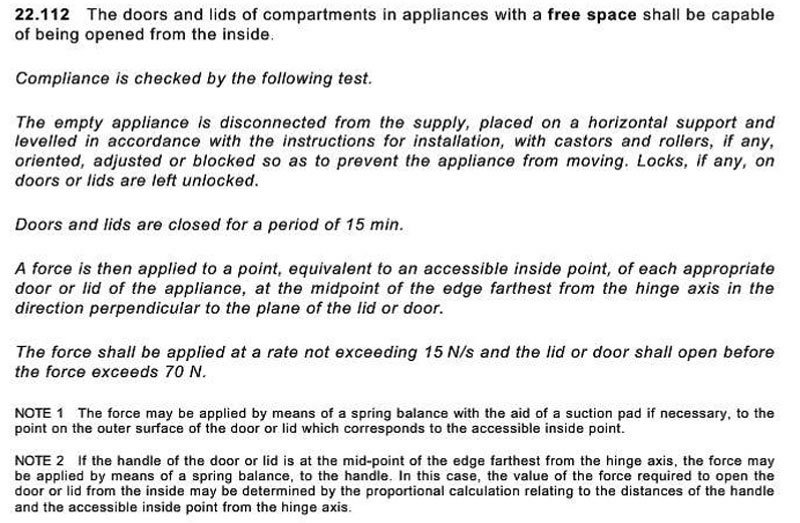

IEC 60335-2-24 clause 22.112
Doors and lids of compartments in appliances test equipment
Parameters
Input Power
AC 120V 60HZ

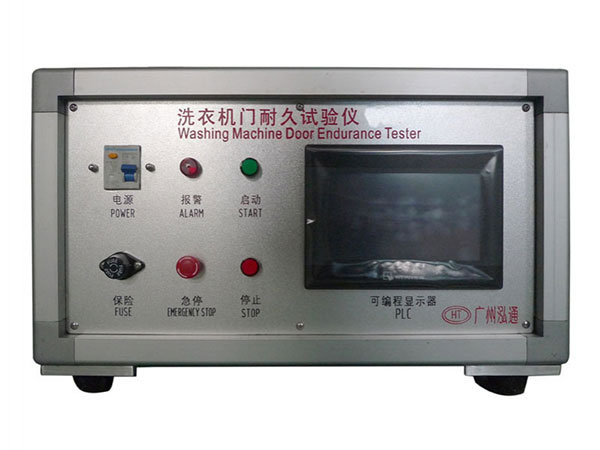

Control
Mitsubishi PLC
Display
10-inch touch screen
Test Frame
High-grade aluminum frame, can be compatible with different sizes of test samples
Manipulators
Left Door Opening Manipulator: Used to open the left side doors of appliances, with locking cylinder
Right Door Opening Manipulator: Used to open the right side doors of appliances, with locking cylinder
Door Locking Switch Opening Manipulator: Used to open the locking switch before opening the door
Test Times
Can be preset on touch screen, 0-999999 adjustable, when the actual test times reach to the preset value, the system will automatically stop
Door Open /Close Time
Can be preset on touch screen, 0-999.9S adjustable
Door Open /Close Speed
0-360°/s can be preset on touch screen, adjustable
Door Open /Close Angle
0-135° can be preset on touch screen, adjustable
Force Control
control by the feedback from a force sensor
Test Station
Single
Test Sample Range
Refrigerator which with left or right opening door, Pyrolytic self-cleaning ovens, Tumble washing machine / dryer
Test Project
1. Judge the force to open the refrigerator door
2. Pyrolytic self-cleaning ovens interlocking system and door seals durability test
3. Tumble washing machine / dryer door opening/ close endurance test
Load Voltage
0-250V, adjustable
Door Opening Fixtures
Sucker:1 Set; Grasper:1 Set
Device Dimensions
Test Frame:1500mm*1300mm*2200mm; Electrical Control Chamber:400mm*300mm*500mm
Test Project Analysis

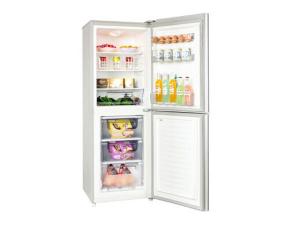

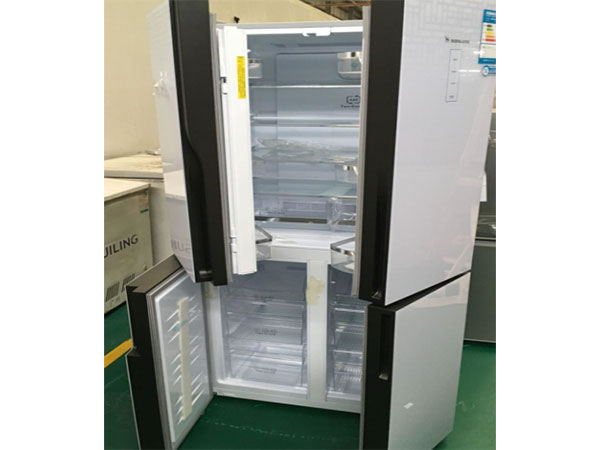

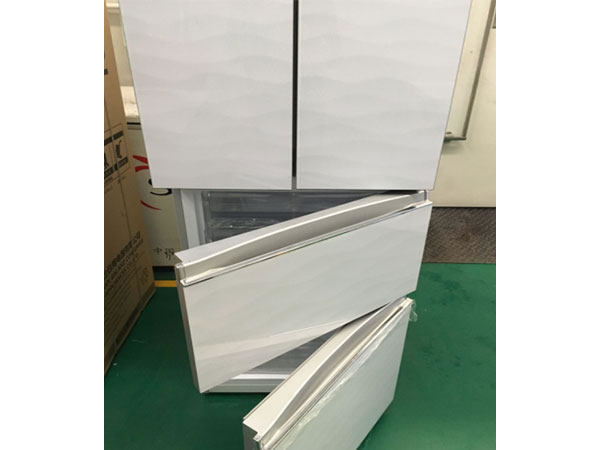

1. Judge the force to open the refrigerator door

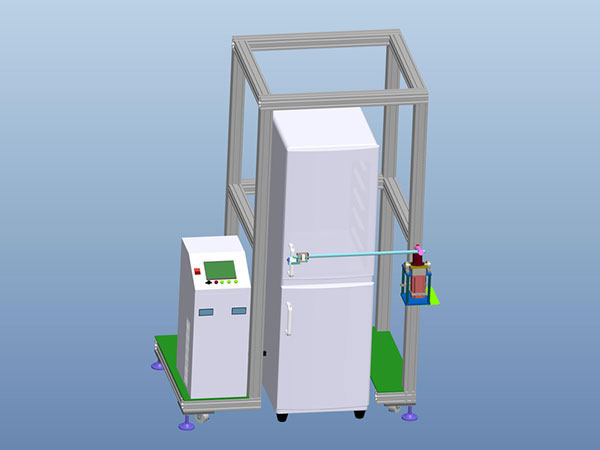

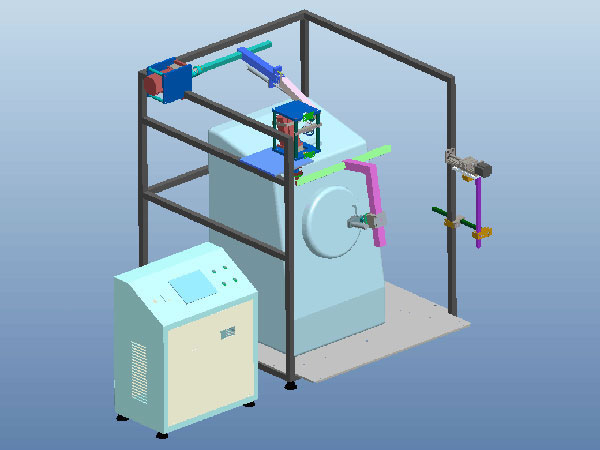

Shown as below picture (for reference only, the actual is that the axis of rotation of the manipulator is coinciding with the center of the door hinge center), the manipulator grasps the door handle of the refrigerator and open the door at the speed of 1.5N/s, the peak force value should be less than 70N.
Applicable for test sample: refrigerator which with left or right door.
2. Pyrolytic self-cleaning ovens interlocking system and door seals durability test: Open or close the door 5000 times at certain requirements through the manipulator, every 1000 times, the interlocking system works one time.

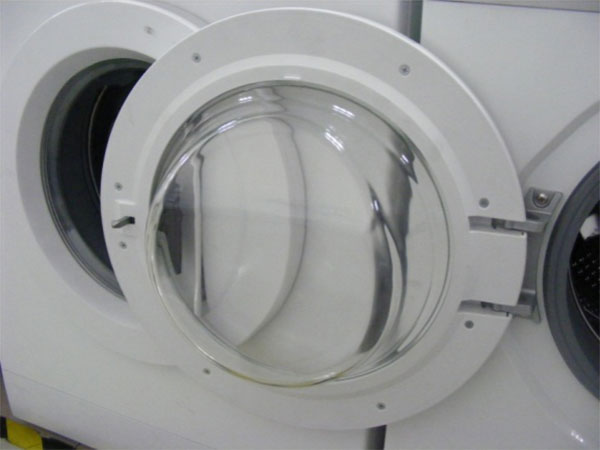

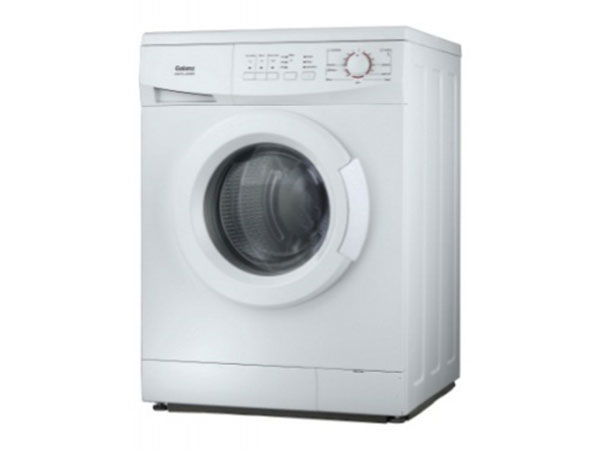

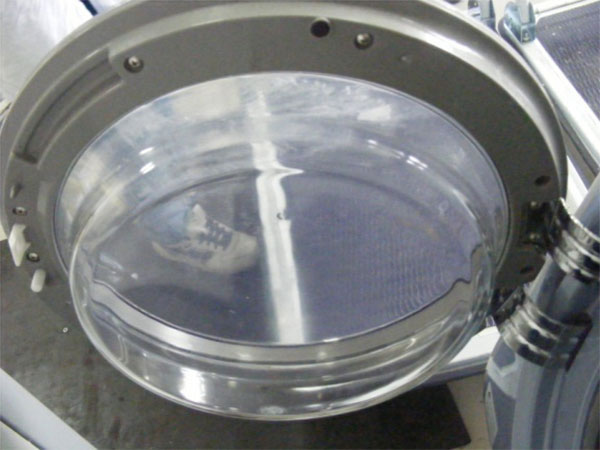

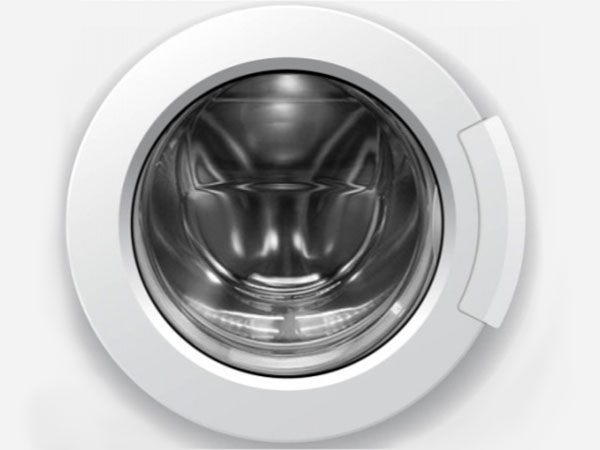

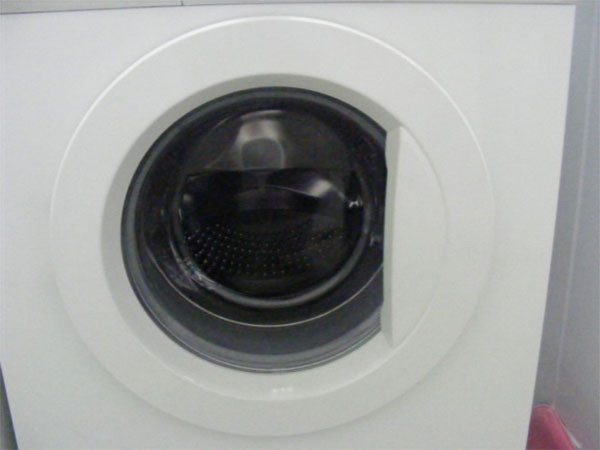

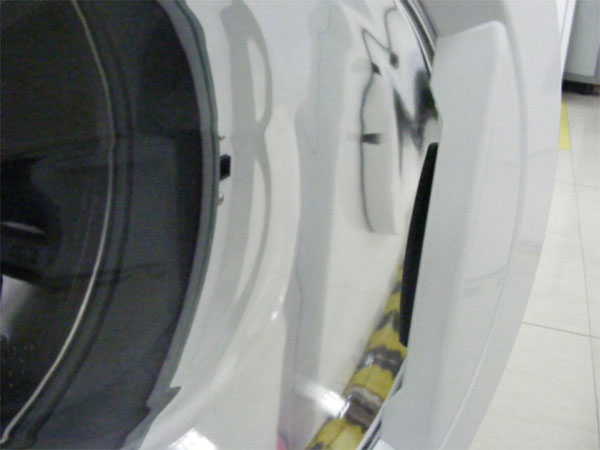

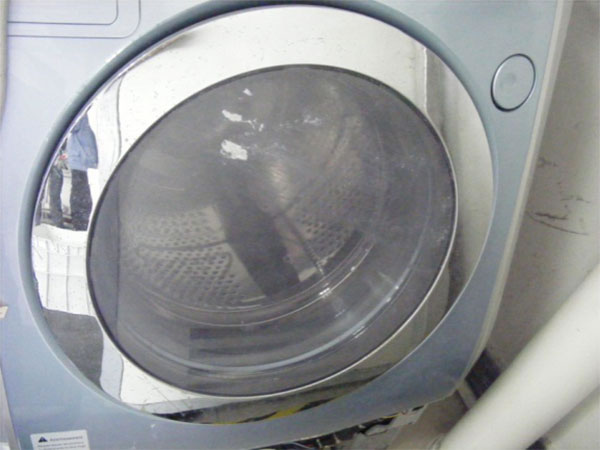

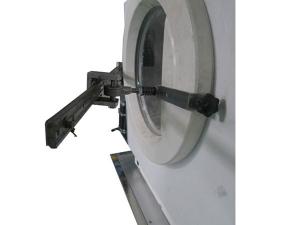

3. Tumble washing machine / dryer door opening/ close endurance test
Test 1: the door can not open or the interlocking device cut off the power supply when open to 75mm, and when open >75mm, the tumble washing machine / dryer can not start.
Test 2: Supply rated voltage to the test sample, then open /close the door 6000 times.
Applicable for test sample: pyrolytic self-cleaning ovens which with right or left door, Tumble washing machine / dryer.
Note: If the door with self-locking device, before opening the door, should open the door locking device.
