Standard:
IEC 60950-1 Clause 4.2.6, IEC 60598-1 Clause 4.13.4b), IEC 60065 Clause 12.1.14, IS 616-2010
Application:

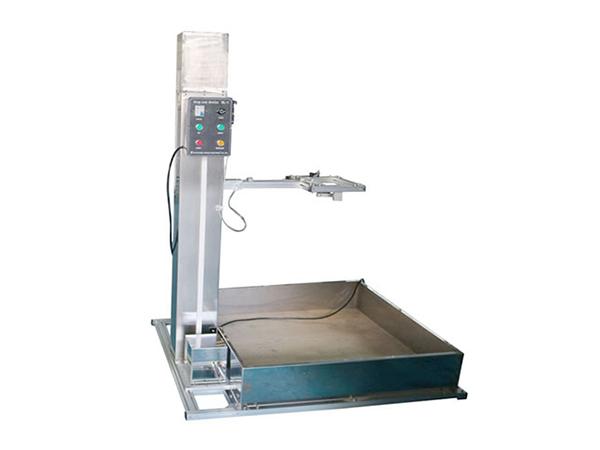

The drop test device is designed to verify the drop resistance performance of audio, video and similar electronics equipment having a mass of 7kg or less.
Test sample:
Audio, video and similar electronic apparatus, Information technology equipment, etc.
Parameters:
| Model | ||

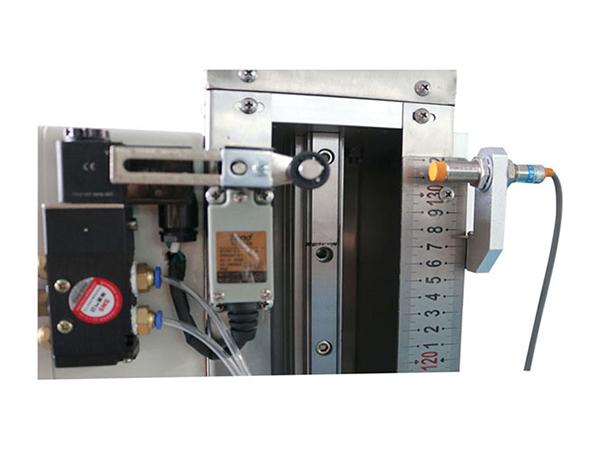

| Release mode | Pneumatic | Pneumatic |
| Drop floor | hardwood at least 13 mm thick, mounted on two layers of plywood each 19 mm to 20 mm thick, 1000*1000mm*(51~60)mm | Concrete base, 1000*1000mm |
| Drop height | 750mm or 1000mm | 1000mm |
| Test sample | information technology equipment having a mass of 5 kg or less, and portable lamps | audio, video and similar electronic apparatus having a mass of 7kg or less |
| Standard | IEC 60950-1, IEC 60598-1 | IEC 60065 |
