Standard
IEC 60884-1 2013 clause 19, IEC 60998.1, VDE0620
Application

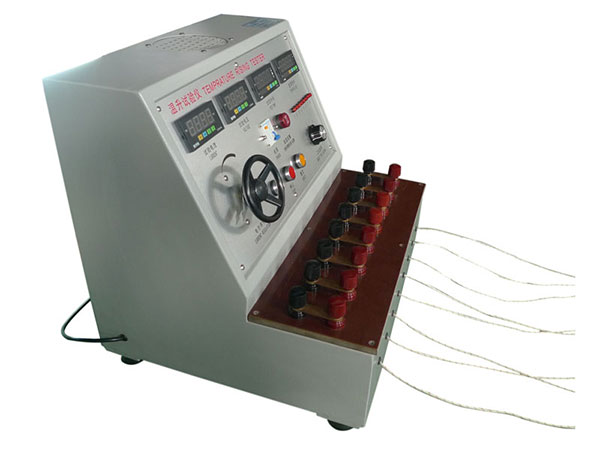

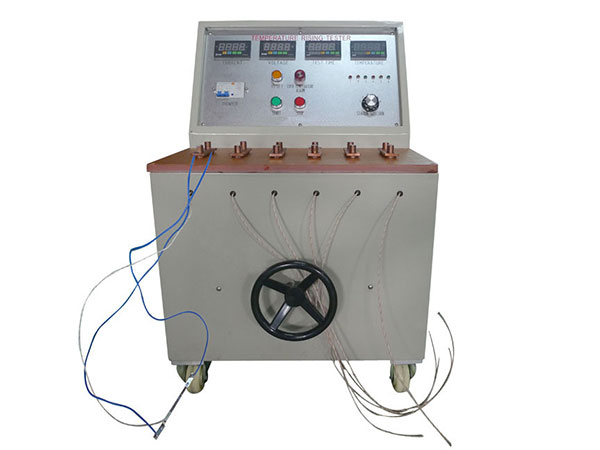

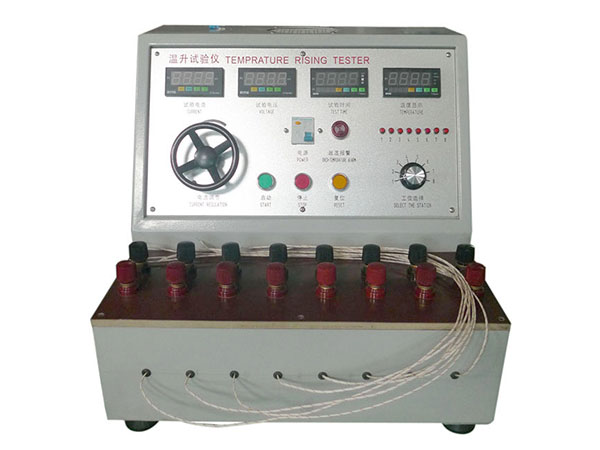

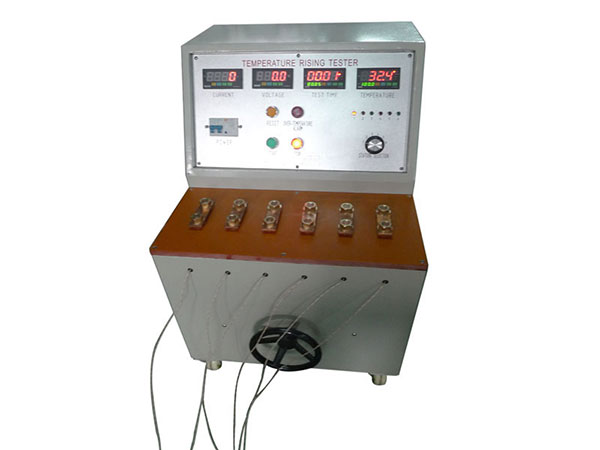

This device is used for testing the temperature increase under normal operation of electrical appliances.
Test Sample
Household plugs and sockets
Feature
External type, thermocouple wire connects directly to the sample
Parameters
| Item | |||
| Working station | 6 | 6 | 6 |
| Testing current | 0-40A | 0-125A | 50-1000A is adjustable |
| Testing voltage | ＜12V | ＜12V | 5V,12V,24V,48V |
| Timer | 0-9999s is adjustable, digital display | 0-9999s is adjustable, digital display | 0-9999s is adjustable, digital display |
| Temperature measuring meter | 0-150℃ digital display | 0-150℃ digital display | 0-150℃ digital display |
| Power supply | 220V,50HZ | 220V,50HZ | 220V,50HZ |
| standard | IEC 60884-1 2013 | IEC 60998.1 | UL |
| Test object | Plug pin | connector | circuit board |
