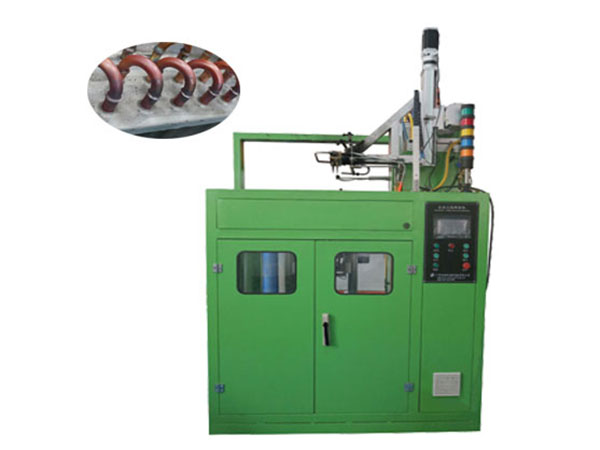

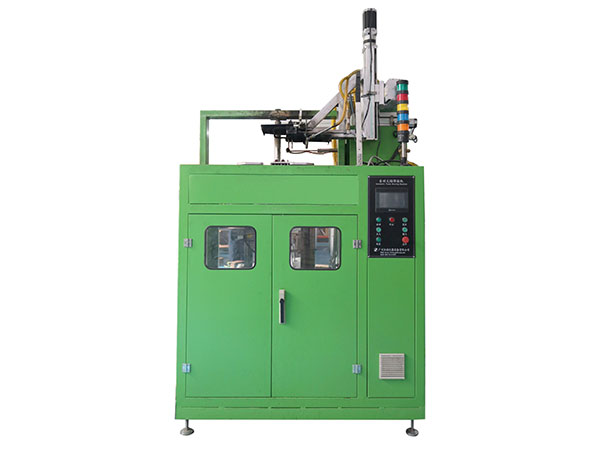

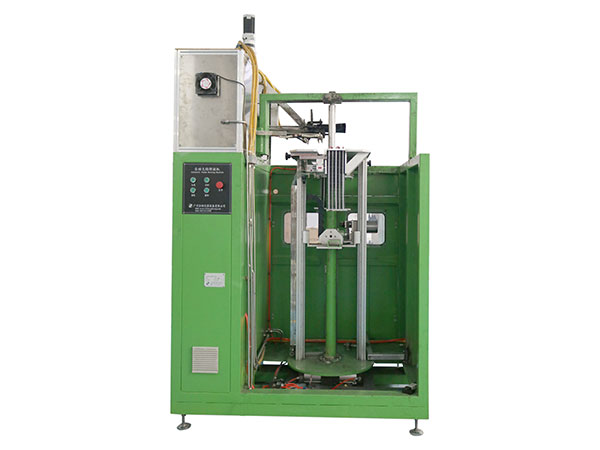

3D Automatic Flame Brazing Machine

Working Principle

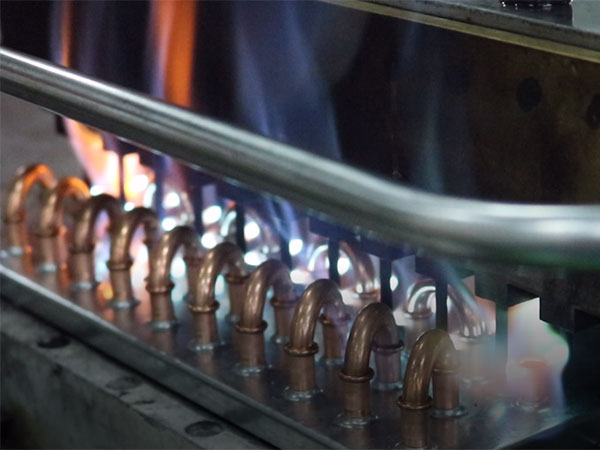

The 3D automatic flame brazing machine is designed for automatic soldering processes and the equipment allows for incredible stability and efficiency during welding.

Indexing by the sophisticated automatic divider can ensure that each welding angle error is minimized.

Applicable Products
Aluminum components, aluminum heat exchangers

Combustion Gas
Natural gas or liquefied petroleum gas + oxygen+air

Welding Products
Customized

Production Tact
One single tact 12s/pc

Workpiece Diameter
Ф 6 mm, ------ Ф 50 mm

Ambient Temperature
0℃-40℃

Relative Humidity
30-98%RH

Solder Ring Requirements
Standard solder ring

Special Feature
1. Can weld workpieces with side panels
2. Can weld any row and column of the workpiece
3. The fins of the workpieces will not change color during welding process

Main Function
1. Automatically ignite and extinguish fire; Automatically switch the strength of the flame; keep flame stable, avoid tempering
2. With faulty alarm and self-diagnostic functions
3. Gas concentration detection function: when the gas concentration reaches to the 50% of explosive limit, the system will automatically shut down or close the gas valve, and alarm occurs.
4. Extinguishing with nitrogen: can avoid deflagration.
5. Power-off protection: the equipment will automatically fill in nitrogen
6. Emergency button: In urgent cases, the electrical and pneumatic system can be shut-off immediately, and starts extinguishing protection.

Benefits Analysis
Every 8 hours of production can reach 2500 pieces or more. The device can operate 20 hours continuously.
